Unlike traditional three piece bogies, this control type bogie adopts a widened control type wedge, effectively improving the anti diamond stiffness of the bogie, thereby providing the speed and stability of the bogie. Elastic connectors are added on both sides of the adapter, achieving elastic positioning of the wheel set, effectively improving the stability of the bogie’s serpentine motion, improving the longitudinal and transverse dynamic performance of the bogie, and reducing wheel rail wear. The use of long travel and frequent contact elastic side bearings increases the rotational resistance moment between the bogie and the vehicle body, improves the overall operational performance of the vehicle, and ensures safe and stable operation of the vehicle.

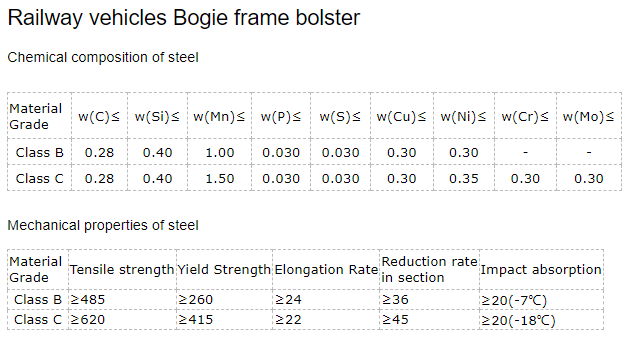

In order to ensure driving safety, we have adopted AAR class B+ steel in the design and manufacture of bolster and side frame. While providing structural strength of bolster and side frame, we have reduced the weight of bogie, thus reducing the Unsprung mass of bogie and providing dynamic performance of bogie.
In summary, this controlled bogie has the advantages of low noise, excellent dynamic performance, safety and reliability, and convenient maintenance, effectively ensuring customer needs.
