Introduction：
The air brake hose coupling are provided to connect brake pipeline and feed pipeline/MR MR pipeline throughout the train.the coupling heads the feed pipe/MR coupling hose are of opposite design to those of the brake pipe coupling hoses.
Our offered brake hose coupling haed are manufactured following the industry laid parameters and the demands of our clients. (Reference standards: UIC830-I-85,UIC 514-I-V)

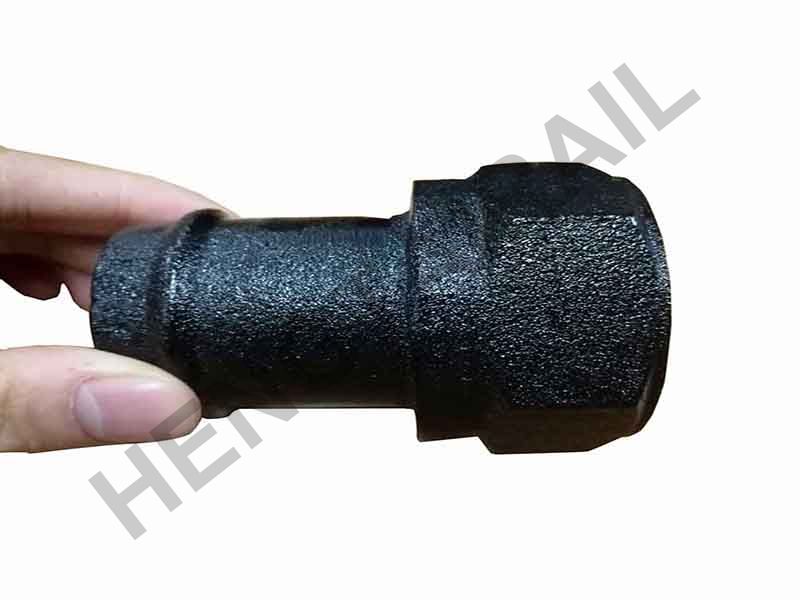

For installation of the air brake hose coupling ,they are provided with threaded nipples on one end of the hoses,these nipples are screwed on /into the angle cock at the both ends for the wagons.
Features:
1.Durable and easy to install
2.long service life
3.Good corrosion resistance
4.Low running costs
Applications:
1.Railway Wagons
2.Railway Coach
3.Rolling Stock
4.Locomotive
5.ect.

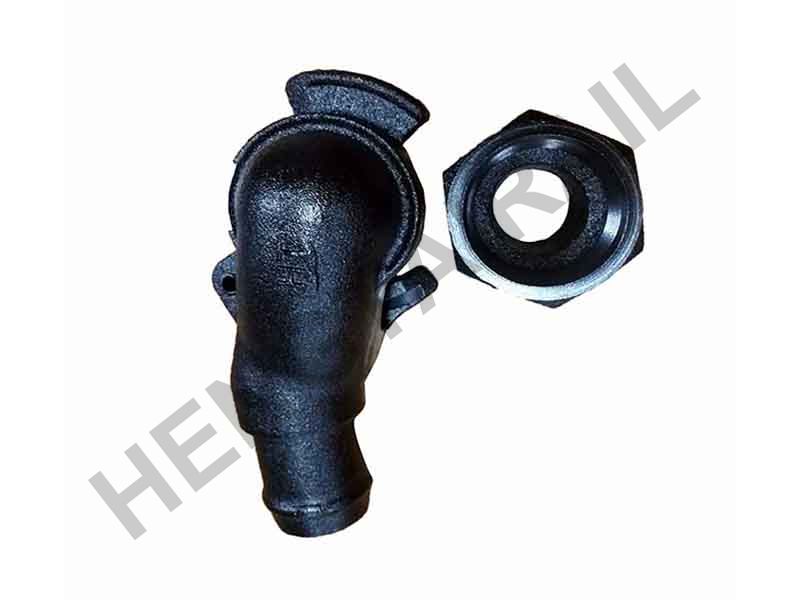

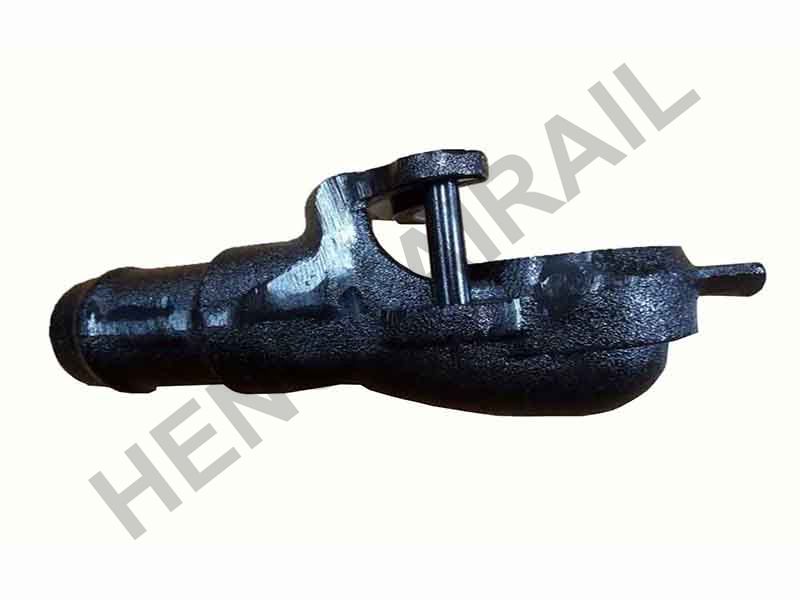

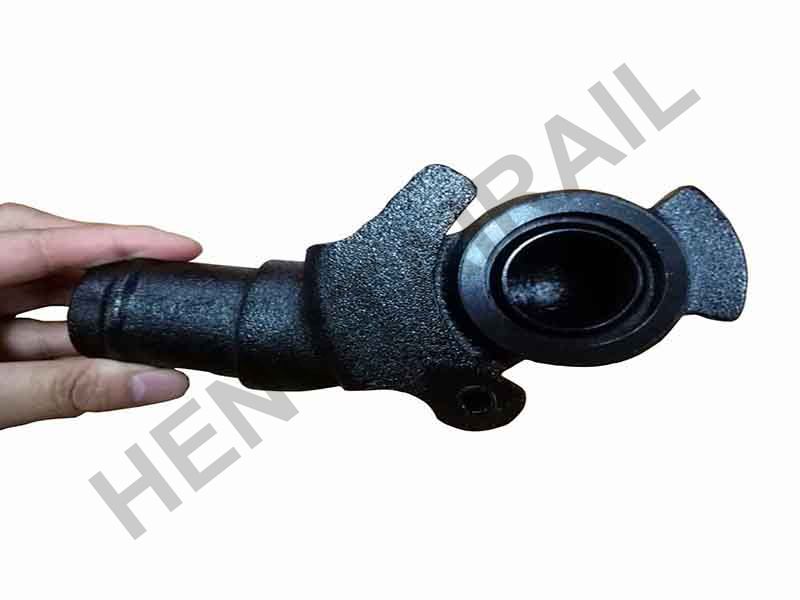

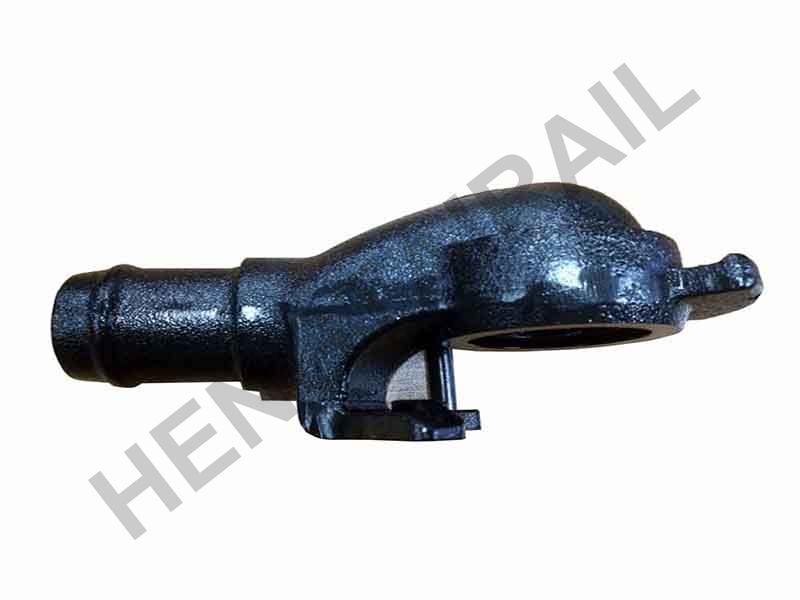

1 | Coupling Head | Malleable Iron or Ductile iron |
2 | Certificate | CRCC,ISO certificate |
3 | Working temperature | -50℃ to +70℃ |

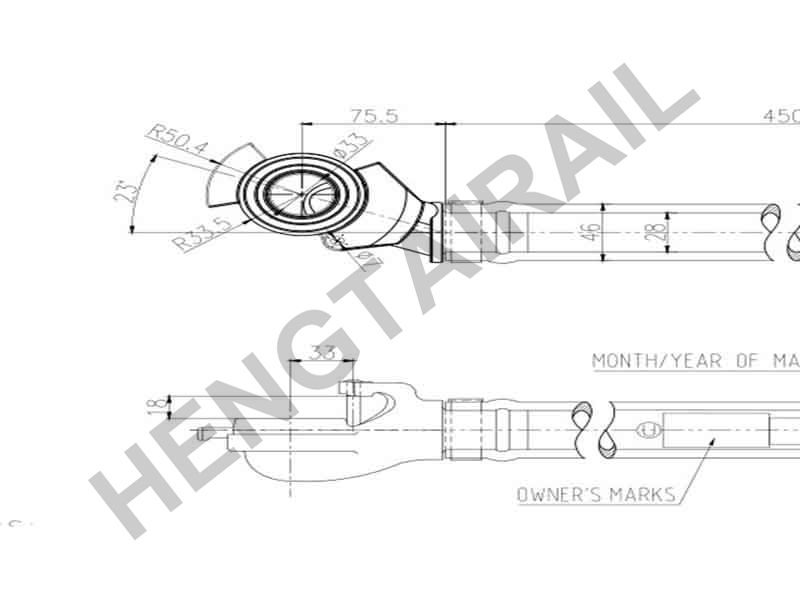

4 | Size | Per drawing |
5 | Working pressure | 0-1MPA |
6 | Hose break-off pressure | ≥7MPA |
7 | Warranty | 12 Months |
