Silicone Aramid Fabric Flexible Gangway

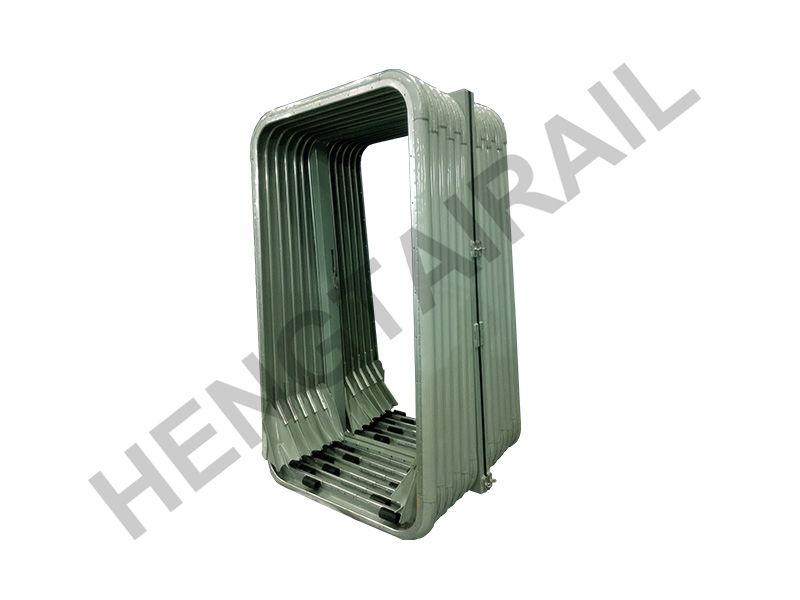

The fabric for the bellows is made of silicone rubber and aramid, which obtains excellent flame retardant properties and outstanding strength. With the proven technique, the fabric is structured to be flexible bellows with aluminum frames. The flexible gangway is installed between two adjacent carriages to provide a safe and comfortable pass for passengers.
Features
Single layer of fabric, water proof, good air tightness, quick coupling and uncoupling.
Application:
This flexible gangway is generally applied to 160km/h railway passenger coaches running on the main line. It is applied to Indian ICF Alstom-LHB design coaches too.
| Dimensions | 2185×1234×400mm |
| Pass height | 1969mm |
| Pass width | Upper: 970mmLower: 700mm |
| Mini. curve radius track | R175m |
| Fire properties | EN 45545 HL3 |
| Thermal insulation | K≤4W/(m2·K) |
| Sound insulation | Rw≥30dB |
| Load capacity | ≥9000N/m2 |
| Waterproof | No leakage after more than 15 minutes water sprinking. |
| Air tightness | The time for the gangway inside air pressure droping from 4Kpa to 1Kpa is more than 50 seconds. |
Finite Element Analysis (FEA) for the components and complete system.
500000 cycles fatigue test approved.
