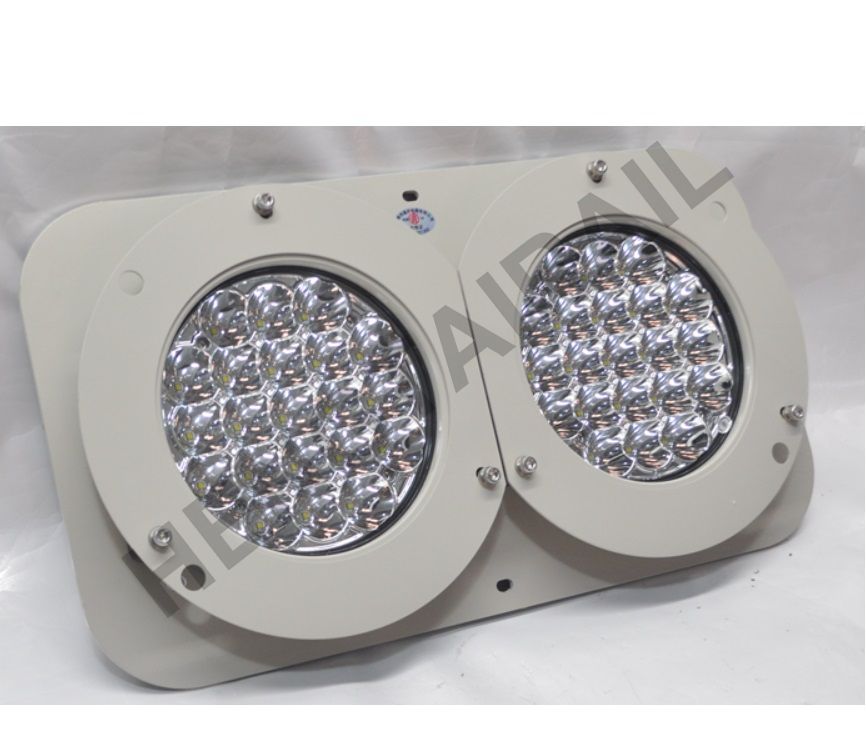

140W DC24V Double LED Locomotive Headlights

Share

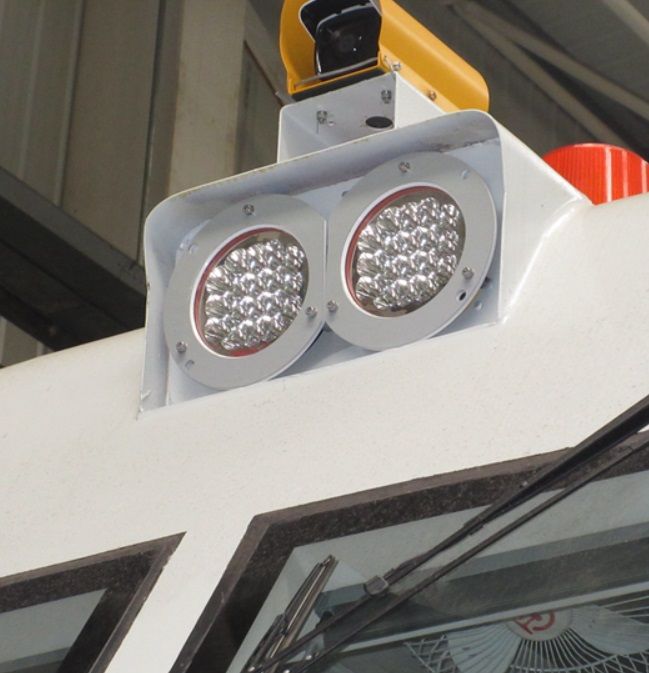

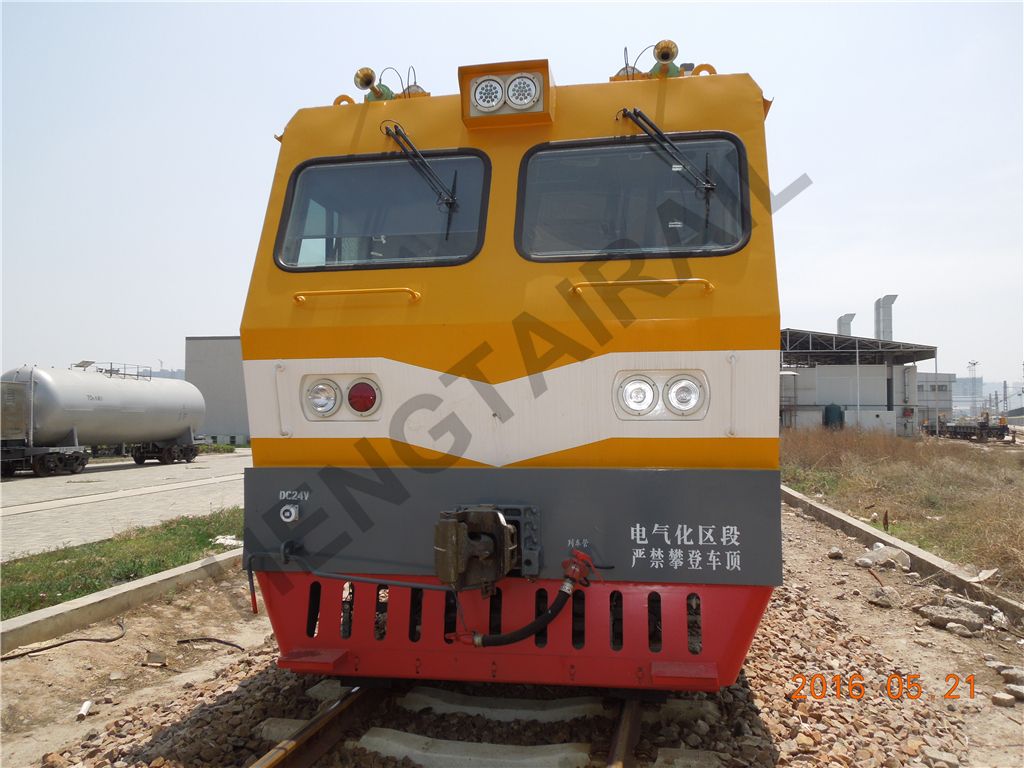

Installed on the outside of the locomotive, it is suitable for all kinds of large-scale railway track line maintenance locomotives, headlights for road maintenance engineering locomotives, backlights, large-scale embedded industrial lighting, and special long-distance lighting for special equipment.The lamp body is made of stamped aluminum profile, which has better heat dissipation. The front cover adopts mirror stainless steel, which has strong corrosion resistance and is bright and beautiful for a long time;The average life of LED light source is more than 30,000h, maintenance-free and longer life;The luminaire can adjust the elevation angle and the left and right angles, and it is convenient and labor-saving to adjust from the outside, the overall structure is simple, and the maintenance operation is convenient.

  • Description
  • Specification
  • Benefits
  • Drawings

Installed on the outside of the locomotive, it is suitable for all kinds of large-scale railway track line maintenance locomotives, headlights for road maintenance engineering locomotives, backlights, large-scale embedded industrial lighting, and special long-distance lighting for special equipment.The lamp body is made of stamped aluminum profile, which has better heat dissipation. The front cover adopts mirror stainless steel, which has strong corrosion resistance and is bright and beautiful for a long time;The average life of LED light source is more than 30,000h, maintenance-free and longer life;The luminaire can adjust the elevation angle and the left and right angles, and it is convenient and labor-saving to adjust from the outside, the overall structure is simple, and the maintenance operation is convenient.

Product Name
Locomotive LED Headlight

Model
GD1E-23-B140

Rated operating voltage
DC24V, voltage floating range DC9-DC32V

Rated power
140 W, single lamp bead 6.5 W, single lamp total 21 high power LED lamp beads

Protection level
IP66,Pure outdoor lighting

Luminous flux
≥ 9900Lm

Irradiation distance
Effective light up to 400-600m

Color temperature
Conventional 6000-6500K white light

Startup type
Support hot and cold start, strobe starts

Lens seal
Pre-installed 3mm thick tempered glass, silicone sealing strip to prevent dust from entering, long-lasting highlight reflection

Shape

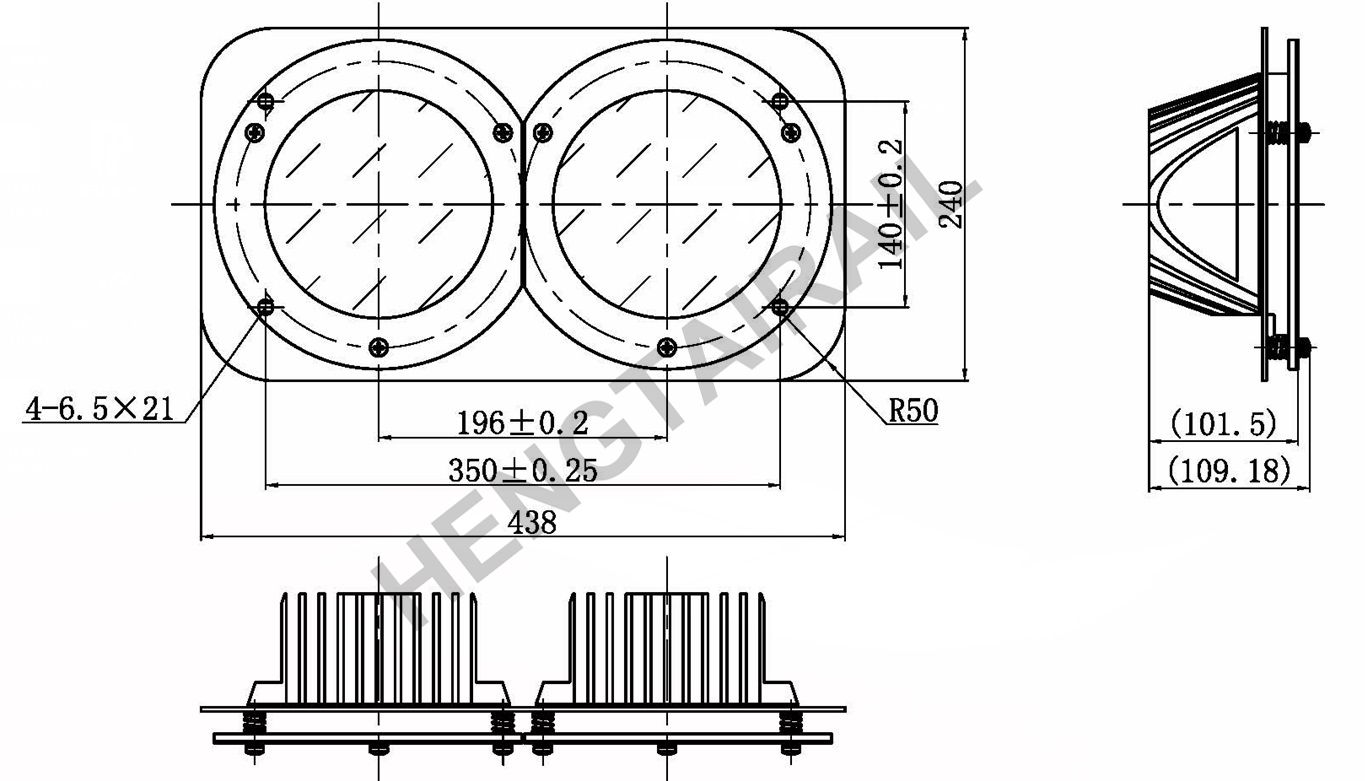

Diameter * compression ring thickness * total thickness (mm) = 440 * 240 * 110mm

Locomotive opening size
The minimum opening size of the light box: 371*171mm, the minimum depth is 100mm; the mounting hole of 345*140mm is the four mounting holes reserved for the locomotive mounting plate, symmetric mounting holes, 4-M5mm

Weight
7.1KG


It can be adjusted by 30° angle of up and down and left and right. After installing the lamp, it must be adjusted to ensure the light is in front of the track.
