Home >> Products >> Electric Components >> Light System >> Front Illuminator >> 40W PAR56 Locomotive Led Headlight

  • 40W PAR56 Locomotive Led Headlight
  • 40W PAR56 Locomotive Led Headlight
  • 40W PAR56 Locomotive Led Headlight
  • 40W PAR56 Locomotive Led Headlight

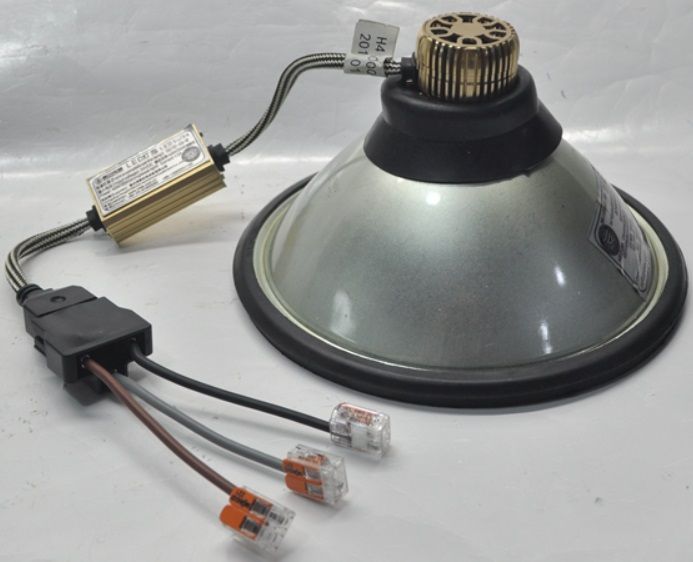

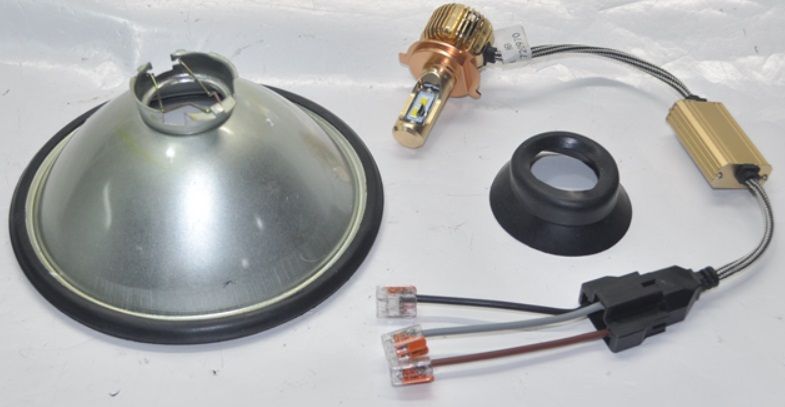

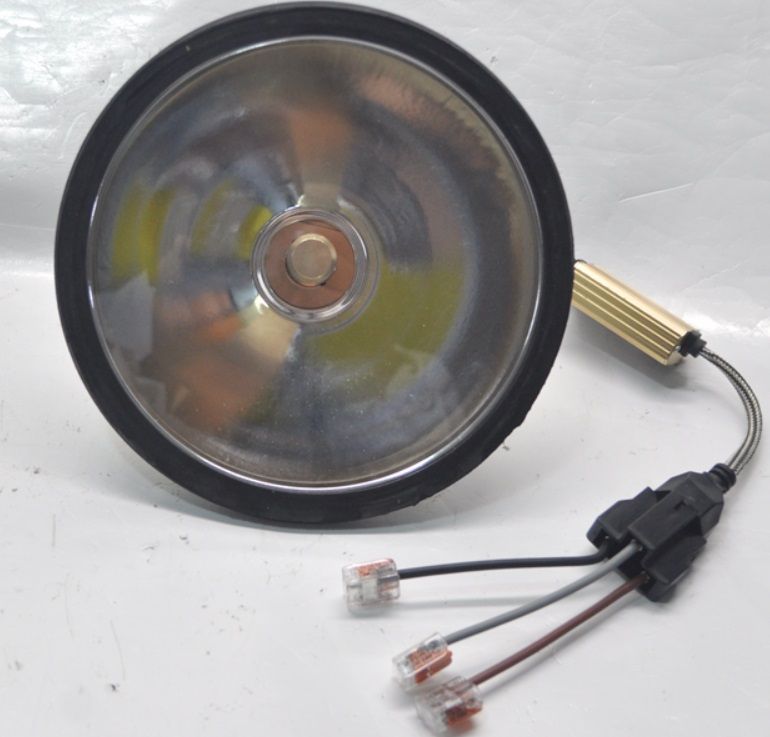

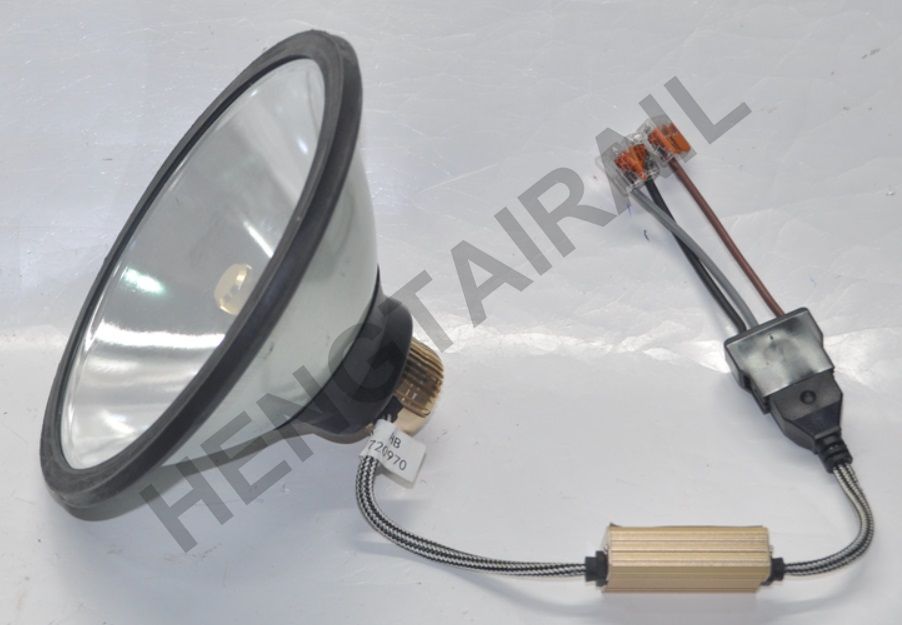

40W PAR56 Locomotive Led Headlight

Share

The products are widely used in the driving illumination and auxiliary lighting of railway track locomotives, replacing the previous halogen bulbs and upgrading the light source.Standard 7-inch (RAR56 size), no need to change the original size interface, can replace the old-fashioned halogen vacuum bulb style.

  • Description
  • Specification
  • Drawings

The products are widely used in the driving illumination and auxiliary lighting of railway track locomotives, replacing the previous halogen bulbs and upgrading the light source.Standard 7-inch (RAR56 size), no need to change the original size interface, can replace the old-fashioned halogen vacuum bulb style

Model
GDE1-PRA56-H4

Rated operating voltage

DC24V, voltage floating range DC9-DC32V

rated power

Nominal 40W, actual 40W (all light), 20W (half light)

Protection level

 IP65,Pure outdoor lighting

Luminous flux

 ≥ 4000Lm

Irradiation distance

 Effective light up to 150-200m

Color temperature

 Conventional 6000-6500K white light

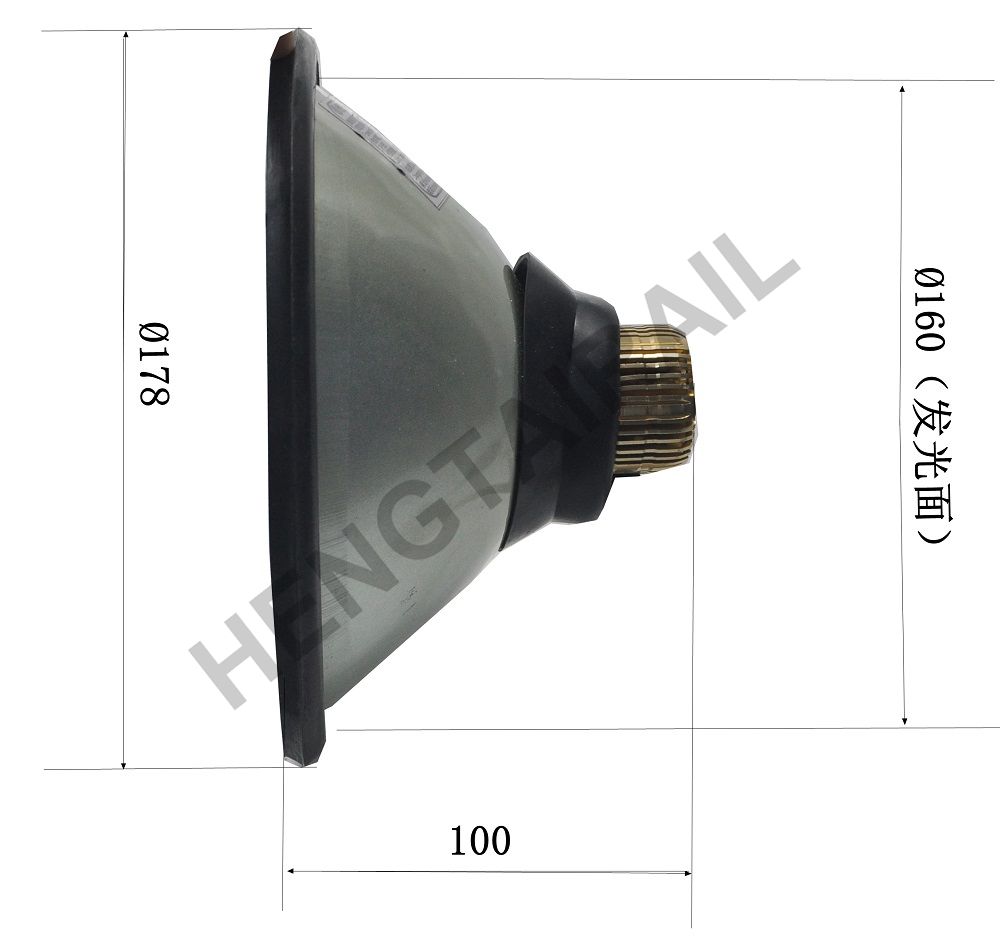

Dimensions

 Diameter*Lighting size*Thickness=178*160*100mm

Locomotive opening size

 Φ170mm

Weight

0.6KG


40W PAR56 locomotive led headlight
