  • Rated Power 50w Locomotives LED Headlights
  • Rated Power 50w Locomotives LED Headlights
  • Rated Power 50w Locomotives LED Headlights

Rated Power 50w Locomotives LED Headlights

Share

The products are widely used in the driving illumination and auxiliary lighting of railway track locomotives, replacing the previous halogen bulbs and upgrading the light source.Standard 7-inch (RAR56 size), no need to change the original size interface, can replace the old-fashioned halogen vacuum bulb style


  • Description
  • Specification
  • Drawings

The products are widely used in the driving illumination and auxiliary lighting of railway track locomotives, replacing the previous halogen bulbs and upgrading the light source.Standard 7-inch (RAR56 size), no need to change the original size interface, can replace the old-fashioned halogen vacuum bulb style

ModelPRA56
Rated operating voltageDC24V, voltage floating range DC9-DC32V
rated powerNominal 60W, actual 50W (all light), 30W (half light)
Protection level IP66,Pure outdoor lighting
Luminous flux ≥ 4000Lm
Irradiation distance Effective light up to 200-300m
Color temperature Conventional 6000-6500K white light

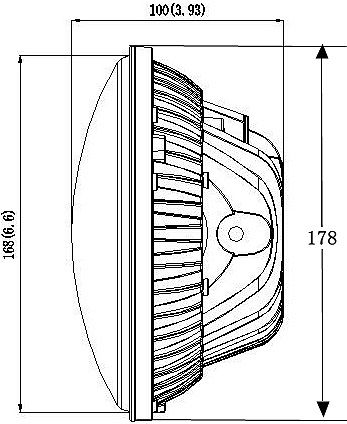

Dimensions Diameter*Lighting size*Thickness=178*168*100mm
Locomotive opening size Φ170mm
Weight 1.1KG
Can be applied to the power supply, can be applied to the locomotive type with different voltage input (DC110V 74V 220V, etc.)



rated power 50w Locomotives LED headlights
