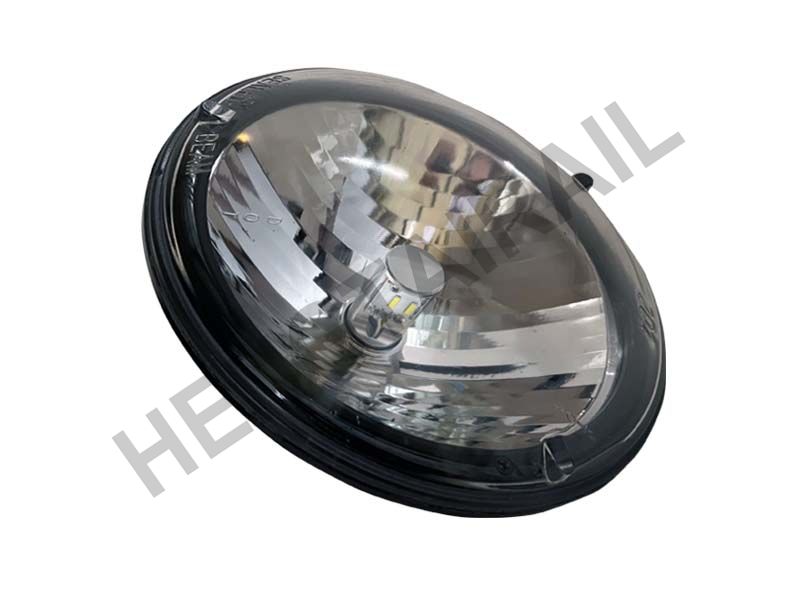

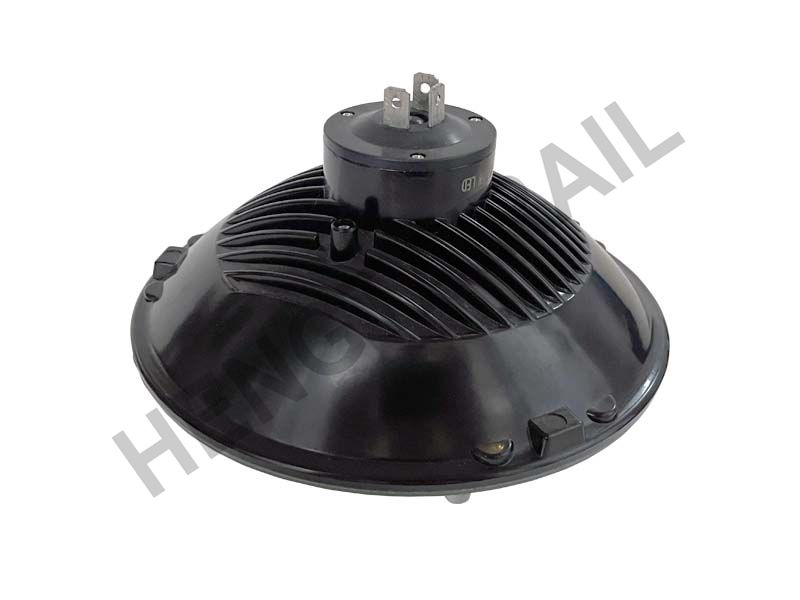

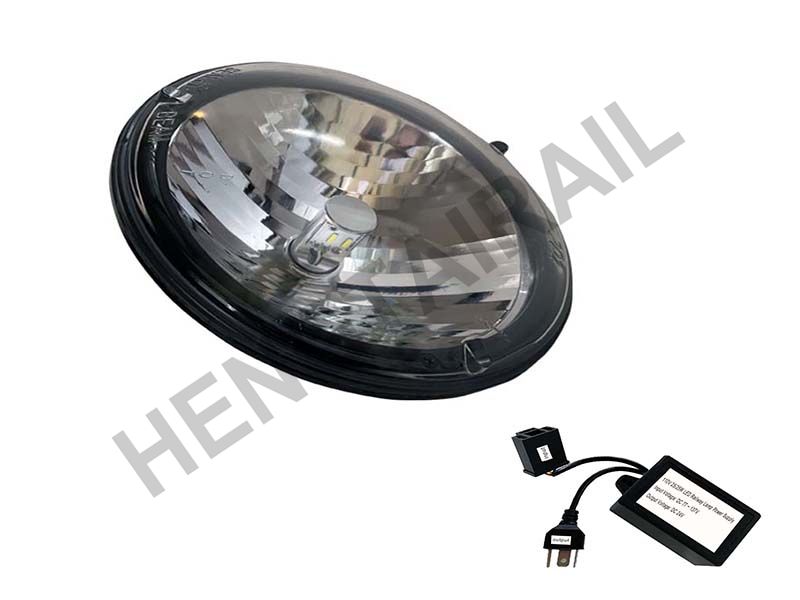

PAR56 110V 25W Rail LED Headlamp

Share

The products are widely used in the driving illumination and auxiliary lighting of railway track locomotives, replacing the previous halogen bulbs and upgrading the light source.Standard 7-inch (RAR56 size), no need to change the original size interface, can replace the old-fashioned halogen vacuum bulb style.

  • Description
  • Specification

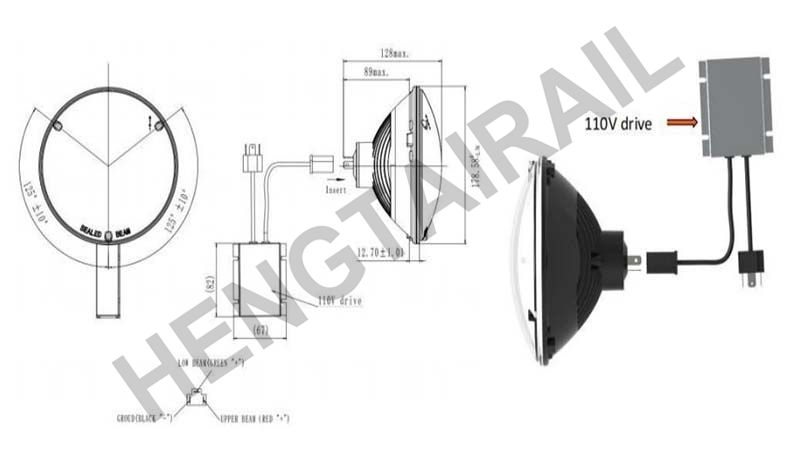

  • Drawings

The products are widely used in the driving illumination and auxiliary lighting of railway track locomotives, replacing the previous halogen bulbs and upgrading the light source.Standard 7-inch (RAR56 size), no need to change the original size interface, can replace the old-fashioned halogen vacuum bulb style

Parameter
Rated Voltage110V
Rated Wattage25W
Colour Temperature6000K
Life10000hrs
Overall Height Max 128mm
ColourBlack
Base Type3 Contact Lugs
Principal DimensionsDiameter  175.58mm
Thickness  13.71mm
