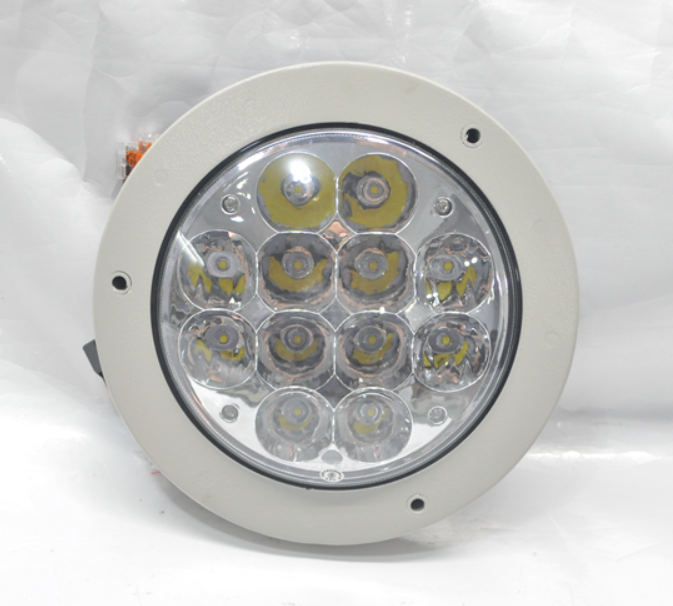

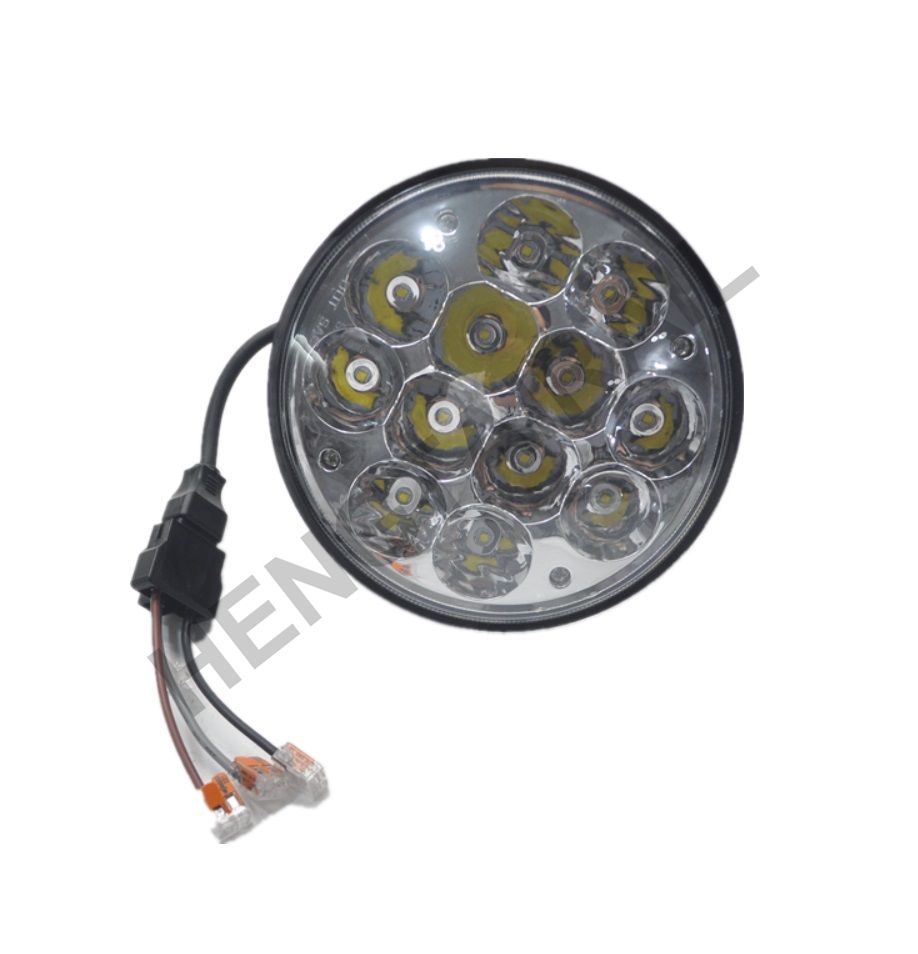

PAR 56 Locomotives 50W LED Headlights

Share

The products are widely used in the driving illumination and auxiliary lighting of railway track locomotives, replacing the
previous halogen bulbs and upgrading the light source.Standard 7-inch (RAR56 size), no need to change the original size interface,can replace the old-fashioned halogen vacuum bulb style.

  • Description
  • Specification

The products are widely used in the driving illumination and auxiliary lighting of railway track locomotives, replacing the
previous halogen bulbs and upgrading the light source.Standard 7-inch (RAR56 size), no need to change the original size interface,can replace the old-fashioned halogen vacuum bulb style.



Model
GDE2-PRA56
Rated operating voltage
DC24V, voltage floating range DC9-DC32V
Rated power
Nominal 60W, actual 50W (all light), 30W (half light)
Protection level
IP66,Pure outdoor lighting
Luminous flux
≥ 4000Lm
Irradiation distance
Effective light up to 200-300m
Color temperature
Conventional 6000-6500K white light
Dimensions
Diameter*Lighting size
*Thickness=178*168*100mm
Locomotive opening size
Φ170mm
Weight
1.1KG
Can be applied to the power supply, can be applied to the locomotive type with different voltage input (DC110V 74V 220V, etc.)
