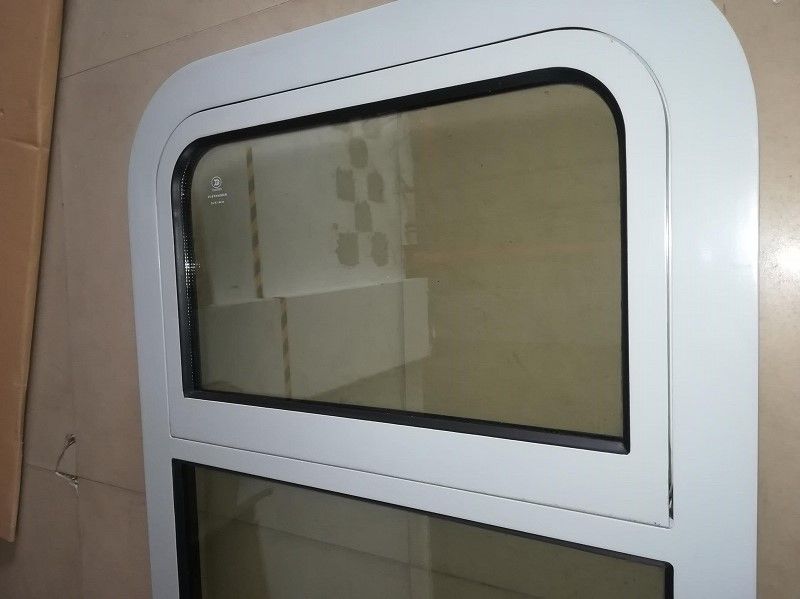

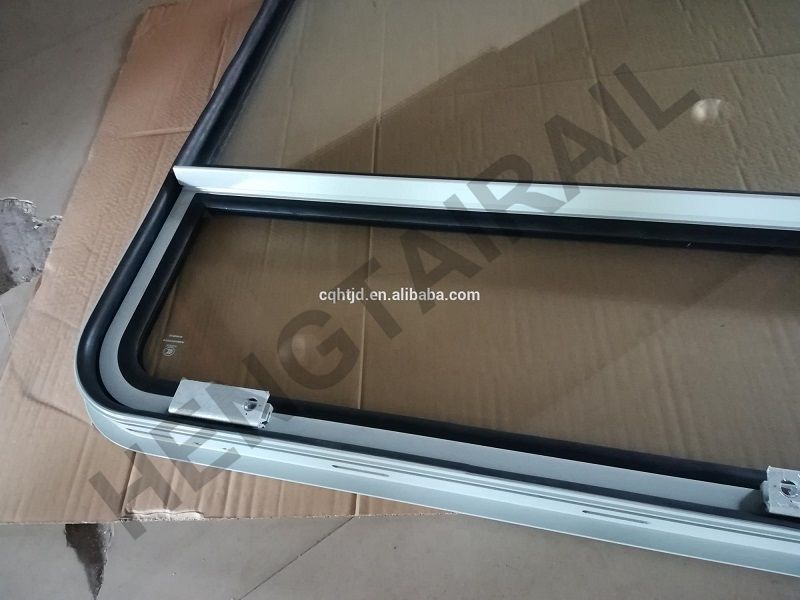

For AC Carriages Moveable window made of double layer tinted safety glass with Argon gas filled in between the glass panel or equivalent to be provided with body side window.The window frame is made of aluminum alloy. The window glass is divided into upper and lower parts. The lower part is fixed. The upper part is movable. The movable part can be opened 30 ° outwards. There are two schemes for double window: 8mm + 6mm (hollow) + 5mm or 5mm + 6mm (hollow) + 5mm. The two layers of glass are reinforced glass, filled with argon or vacuum, and installed by rubber strip pressing method
| Product Name | AC Carriages Moveable Window |
| standard | TB,JIS.etc |
| Glass material | Reinforced glass |
| Window frame | aluminium alloy extruded shape |
| Glass composition | 8mm + 6mm (hollow) + 5mm or 5mm + 6mm (hollow) + 5mm |
| Opening angle of upper part | 30° |
| Window frame treatment process | buffing anodized, powder coating or electrostatic spray |

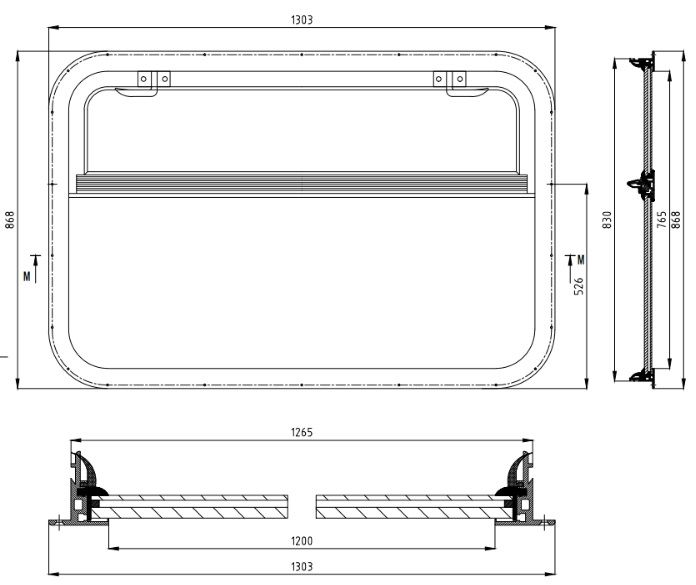

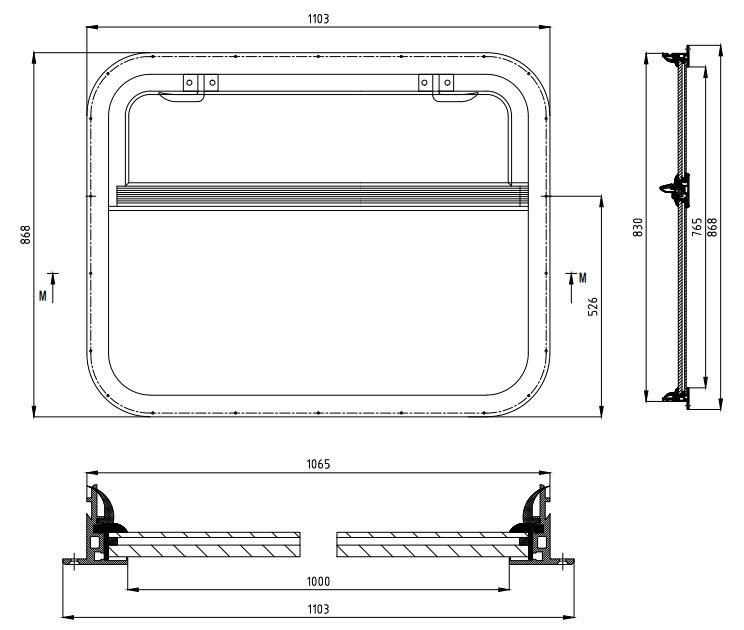

| Dimension | See drawing below |
| Mould opening is acceptable | |
