Railway Inter Car Power Connector

Share

Power connector is used in railway, locomotive vehicle,city railway vehicle and industry electric system. Applicable to control signal connectors in tourist vehicles.

The contact type between contact element and wire end :  Cool pressure connection terminal


  • Description
  • Specification
  • Benefits

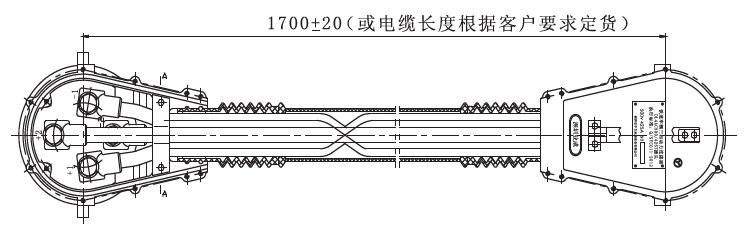

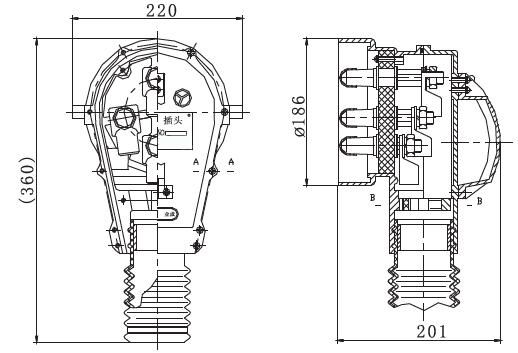

  • Drawings

 Power connector is used in railway, locomotive vehicle,city railway vehicle and industry electric system. Applicable to control signal connectors in tourist vehicles.

The contact type between contact element and wire end :  Cool pressure connection terminal


environment temperature:-50℃~70℃.

relative humidity:90±3%(when temperature is 25℃)

related current:400A

related voltage:AC 660v

insulation resistance:≥500MΩ

contact resistance:≤3mΩ

withstand voltage:≥3000v 50Hz AC

IP:55

mechanical life:≥500

wire: 150mm2


Connecting the plug and socket is crimping

The connector between plug and socket belongs to three spiral slot

Connector surfaces are gold plated

The sealing can prevent rainwater

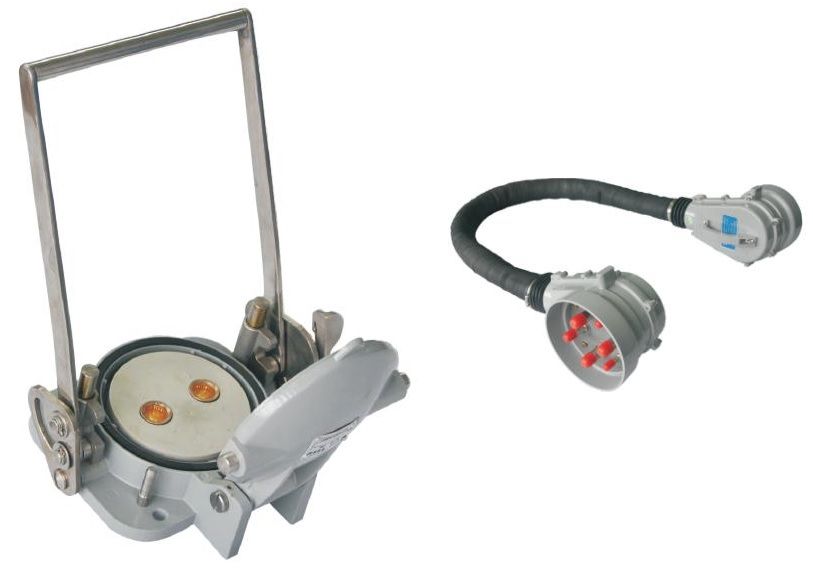

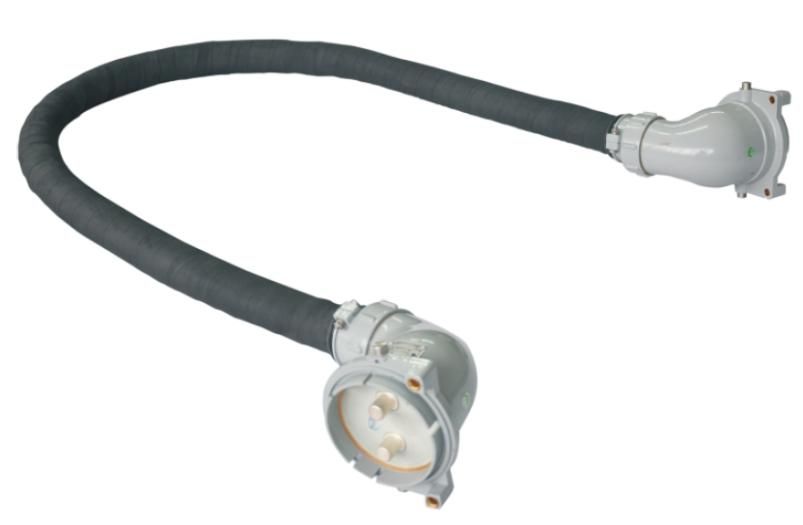

Railway inter car power connector

Railway inter car power connector
