Customized Patterned Rubber Conveyor Belt

Share

The pattern conveyor belt is used for conveying powdery and small materials with an inclination of less than 40 °, and also for conveying packaging bag materials. It is widely used in coal, mining, port, metallurgy, electric power, chemical industry and other fields.


The conveyor belt has safe operation, simple use, easy maintenance capacity and low freight. It can shorten the transportation distance, reduce the project cost and save manpower and material resources.


  • Description
  • Specification
  • Benefits

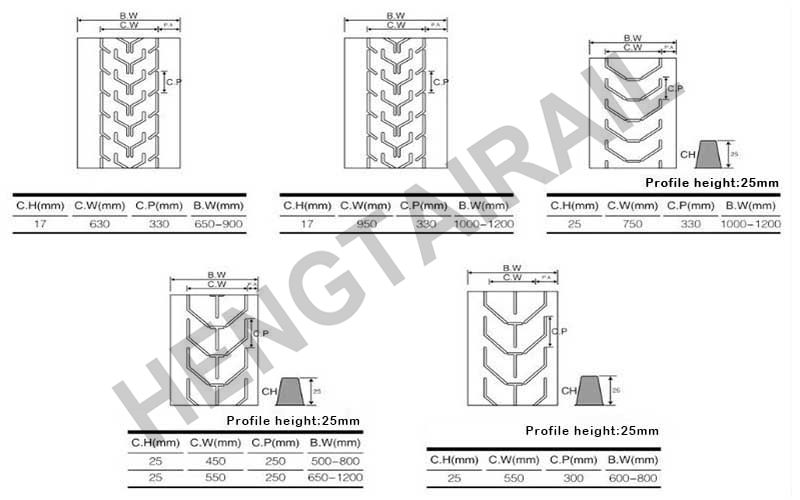

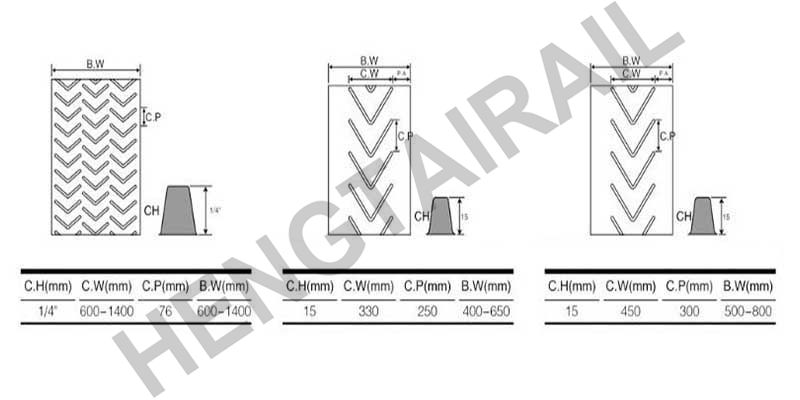

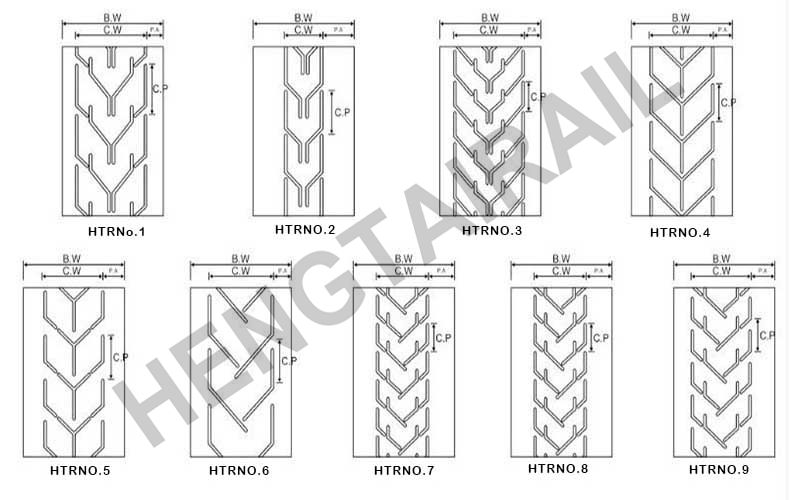

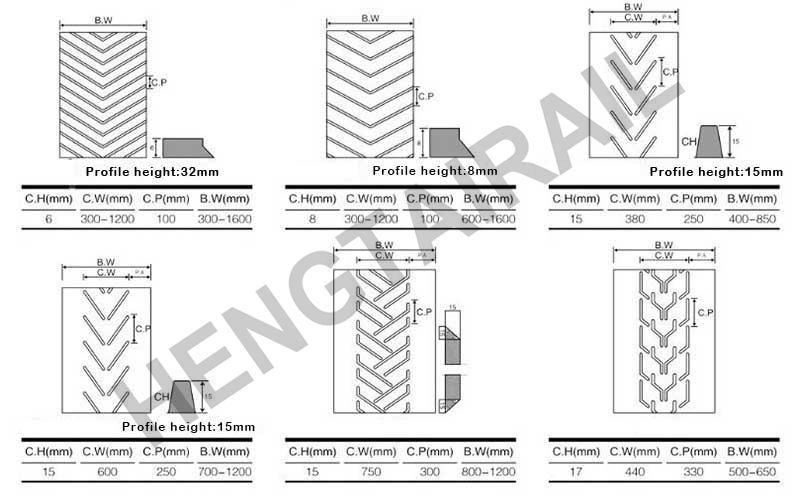

  • Drawings

Conveyor belt, belt conveyor is widely used in agriculture, industrial and mining enterprises and transportation industry to transport all kinds of solid block and powder materials or finished goods. The conveyor belt can be transported continuously, with high efficiency and large inclination angle. The conveyor belt has safe operation, simple use, easy maintenance capacity and low freight. It can shorten the transportation distance, reduce the project cost and save manpower and material resources.


Conveyor belts are widely used in cement, coking, metallurgy, chemical industry, steel and other industries where the conveying distance is short and the conveying capacity is small.


Customized Patterned Rubber Conveyor Belt

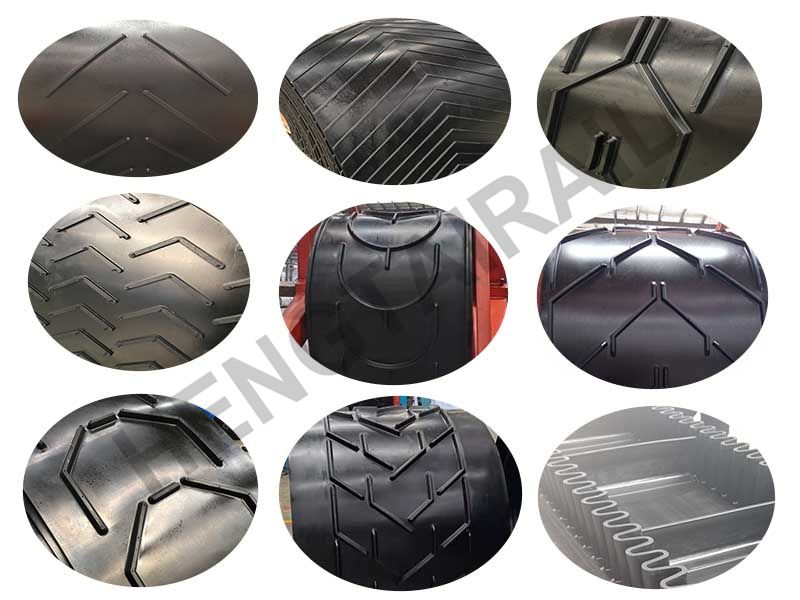

Belt TypesOpen V, Closed-V, L type, H type, Y type, A type and F type,Edging pattern conveyor belt and trimming pattern conveyor belt ect.
Pattern Height5mm、8mm、10mm、15mm、17mm、20mm、25mm、32mm
Belt Width300-2000mm
Cover Rubber Grade8MPA、10MPA、12MPA、15MPA、18MPA、20MPA、24MPA、26MPA ect.
Top+Bottom ThicknessCustomized according to customers
TypeFabric TypeFabric Ply No.Belt Width(mm)Length(M)Thickness (mm)

NN

(Nylon)

NN100

2-10300-2000
100-500
5-35

NN150

2-10300-2000100-5005-35

NN175

2-10300-2000100-5005-35

NN200

2-10300-2000100-5005-35

NN250

2-10300-2000100-5005-35

NN300

2-10300-2000100-5005-35
EP

(Polyester)

EP100
2-10300-2000100-5005-35
EP1252-10300-2000100-5005-35
EP1502-10300-2000100-5005-35
EP2002-10300-2000100-5005-35
EP2502-10300-2000100-5005-35
EP3002-10300-2000100-5005-35
EP4002-10300-2000100-5005-35
EP5002-10300-2000100-5005-35
EE
EE1002-10300-2000100-5005-35
EE1502-10300-2000100-5005-35
EE1752-10300-2000100-5005-35
EE2002-10300-2000100-5005-35
EE250
2-10300-2000100-5005-35
EE3002-10300-2000100-5005-35
CCCC562-10300-2000100-5005-35



Customized Patterned Rubber Conveyor BeltCustomized Patterned Rubber Conveyor Belt

1. Large conveying angle, not easy to slip

2. It is suitable for various occasions.

3. Durable.

4. For meeting the demands of high capacity conveying at steep angles.

5. Easy installation, saving manpower and material resources.

6. High strength
