  •  Railway Vehicle 315B Safety Valve
  •  Railway Vehicle 315B Safety Valve

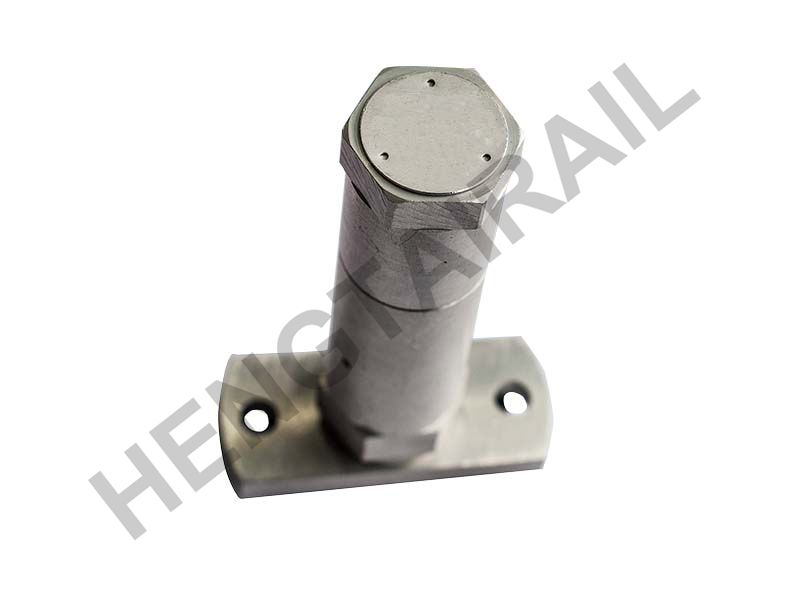

Railway Vehicle 315B Safety Valve

Share

Introduction:

315B safety valve is generally used for locomotive brake. It is connected with the volume chamber of the distribution valve to control the maximum pressure of the volume chamber. When the volume chamber pressure exceeds the set pressure of the safety valve, the safety valve opens. Make the pressure air of the volume chamber discharge to the atmosphere. Once the pressure is reduced to the set pressure, the safety valve will be closed.


  • Description
  • Specification

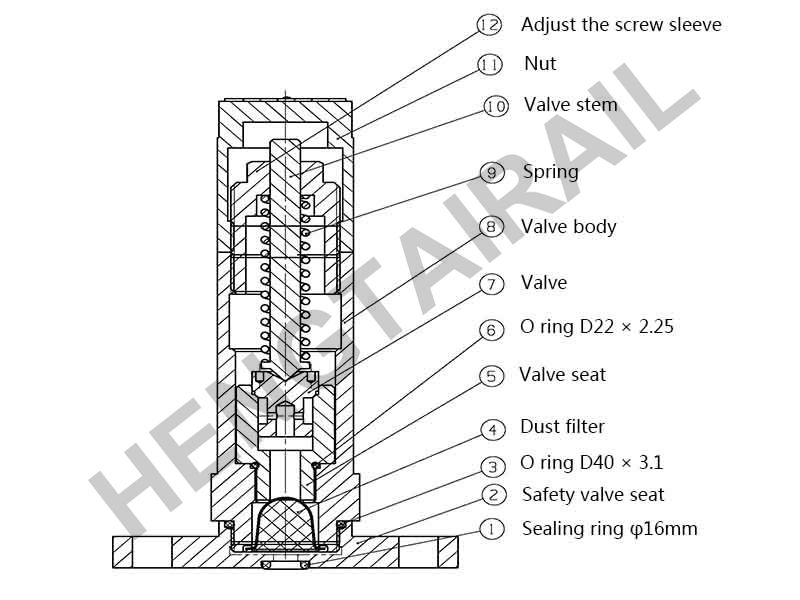

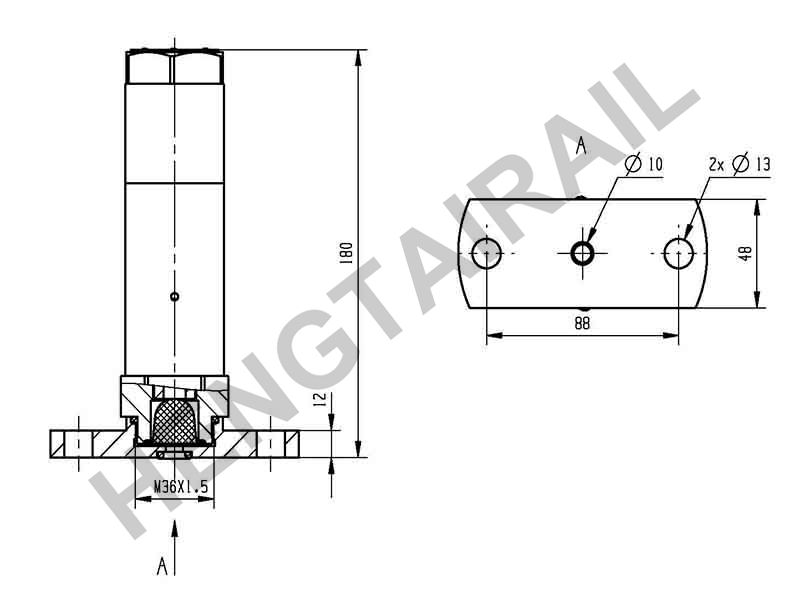

  • Drawings

Introduction:

315B safety valve is generally used for locomotive brake. It is connected with the volume chamber of the distribution valve to control the maximum pressure of the volume chamber. When the volume chamber pressure exceeds the set pressure of the safety valve, the safety valve opens. Make the pressure air of the volume chamber discharge to the atmosphere. Once the pressure is reduced to the set pressure, the safety valve will be closed.



Ambient temperature

- 40℃+ 70℃

Humidity level

2 Grade

oil content

3 Grade

IP

IP 54

Train tube constant pressure

500 kPa or 600 kPa


Railway Vehicle 315B Safety Valve
