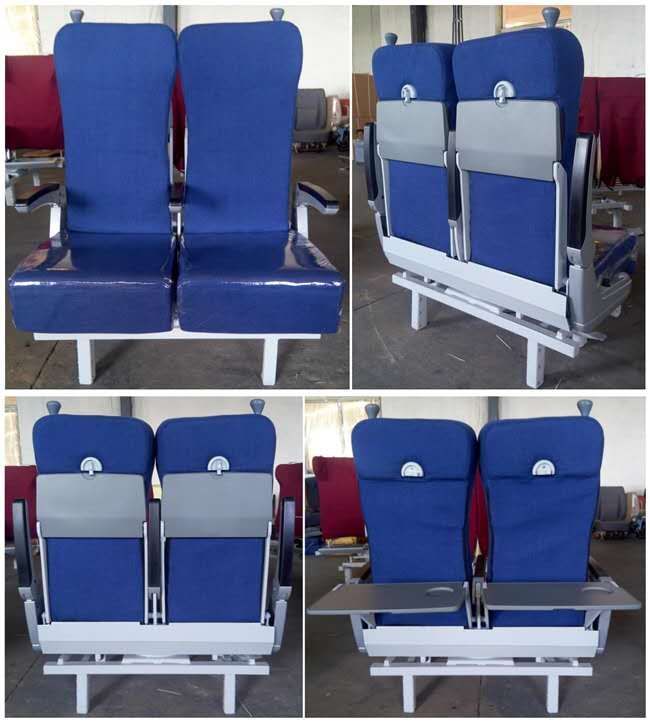

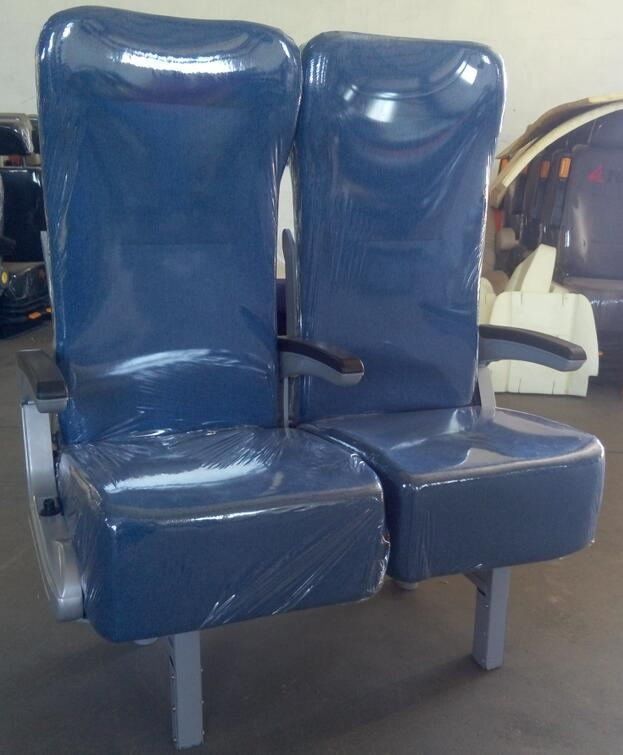

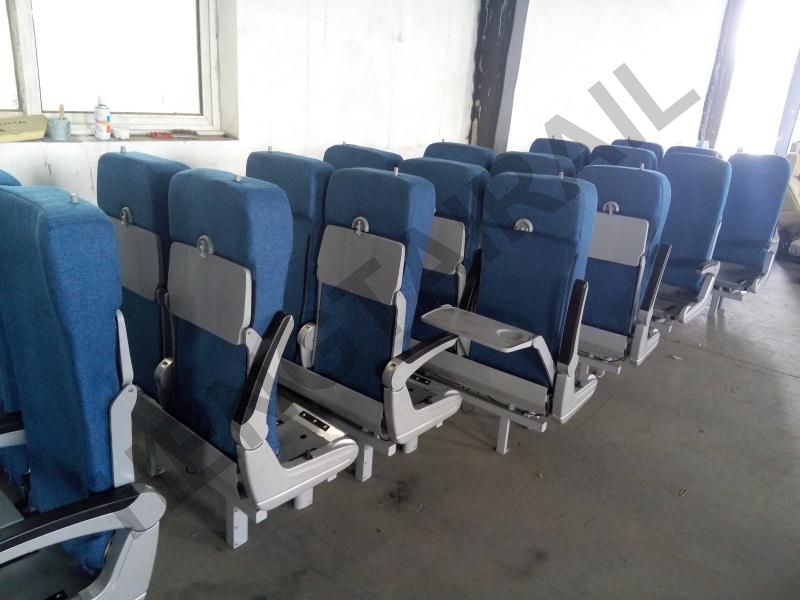

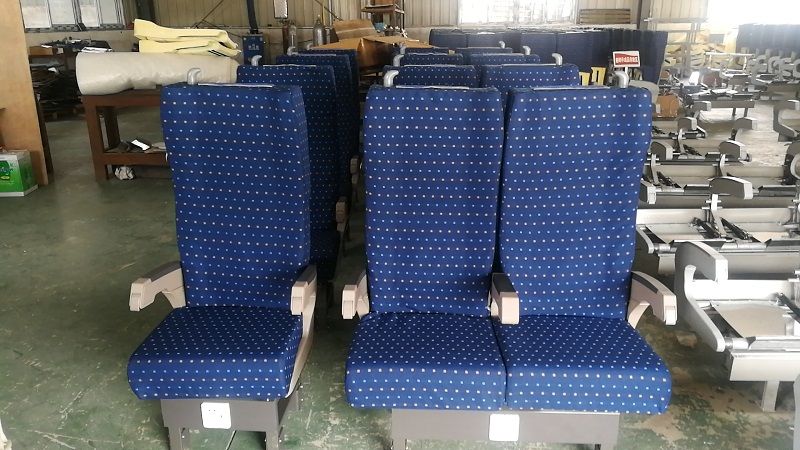

This seat is for passengers in railway carriages. The base is a stainless steel bracket and the seat surface is fabric. At the same time, this seat can also be customized and optional. The optional parts are the rotatable base, the flipped back panel, the armrest, the audio, etc. We can customize the product according to your needs.

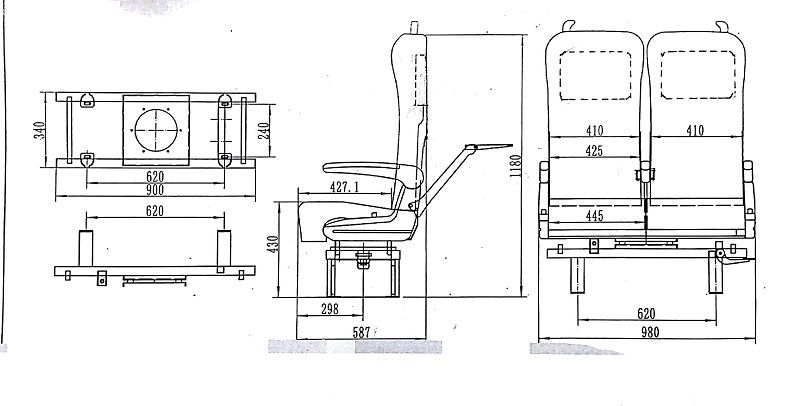

| Items | Specifications |
| Total height of seat, H (mm) | 697-1212 |
| Total width of seat, M (mm) | 450-1140 |
| Width of seat place, F (mm) | 420-670 |
| Depth of seat place, I (mm) | 375-612 |
| Seat cushion height, h1(mm) | 420-688 |
| Back moving range of backrest, La (mm) | 80-150 |
| Front moving range of cushion , la (mm) | 0-40 |
| Heigth of armrest, T (mm) | 482-680 |
| Weight, (kg) | 27-73 |
| Mounting dimension | according to the customer's need |
