Railway Carriage Fixed Glass Shutter Window

Share

The fixed glass louver is a fixed type. When the air conditioner fails, the upper part can be opened for ventilation. The window frame is made of extruded aluminum alloy, polished and anodized, powder sprayed or electrostatic sprayed. The glass can be single-layer reinforced glass or double-layer hollow glass. The glass sealing strip will be made of rubber and will be durable in tropical climate conditions. Rubber is made of neoprene material

  • Description
  • Specification
  • Drawings

The fixed glass louver is a fixed type. When the air conditioner fails, the upper part can be opened for ventilation. The window frame is made of extruded aluminum alloy, polished and anodized, powder sprayed or electrostatic sprayed. The glass can be single-layer reinforced glass or double-layer hollow glass. The glass sealing strip will be made of rubber and will be durable in tropical climate conditions. Rubber is made of neoprene material

Product Name
Fixed Glass shutter window for train
standard
TB,JIS.etc
Glass material
Reinforced glass
Window frame
aluminium alloy extruded shape
Glass composition
8mm + 6mm (hollow) + 5mm
or 5mm + 6mm (hollow) + 5mm
or Single layer glass
Window frame treatment process
 buffing anodized, powder coating or electrostatic spray

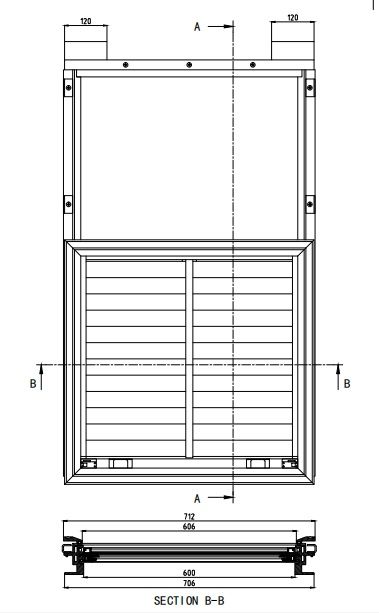

Dimension
See drawing below
Mould opening is acceptable


Railway carriage Fixed Glass shutter window

Railway carriage Fixed Glass shutter window
