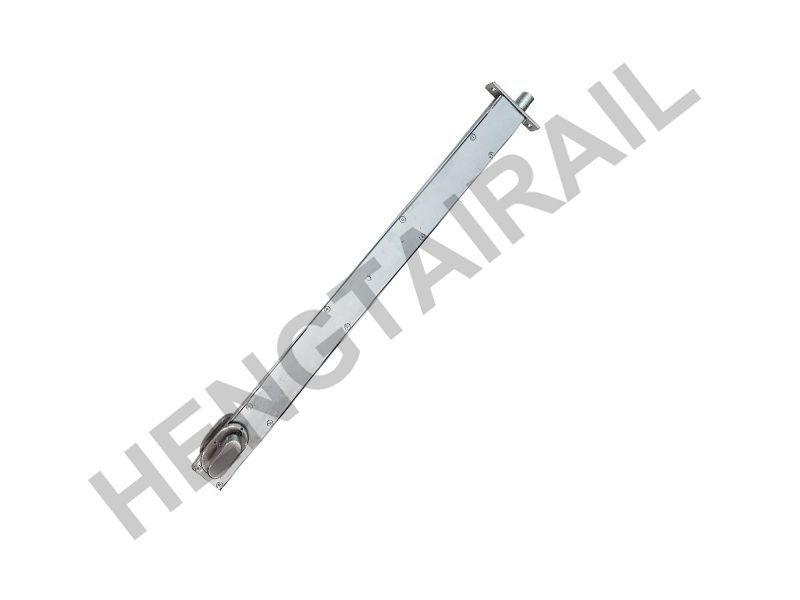

Railway Coach Sliding Door Lock

Share

This kind of lock is main applies to railway carraige door. The material of the lock is stainless steel and the outside surface of lock has experiences polishing, grinding and galvanizing  processwhich will avoid the bilisters, pock marks and scratching . This kind of lock is suitable for the 20mm to 35mm door and the core of lock is 8X8 square core.



1) Streching Stroke: 20mm

2) The thickness of lock body: 12mm

3) Lock core: 8*8mm

4) Surface Treatment: Dull polishing 400


  • Description

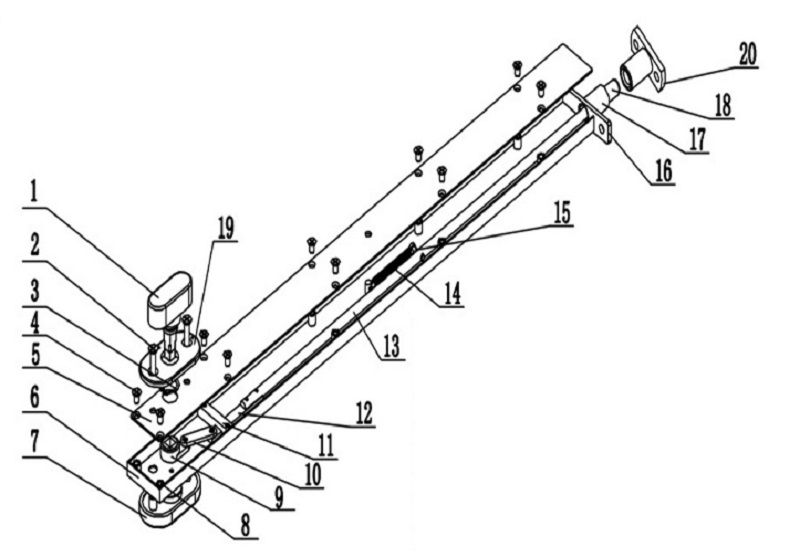

  • Drawings

This kind of lock is main applies to railway carraige door. The material of the lock is stainless steel and the outside surface of lock has experiences polishing, grinding and galvanizing  processwhich will avoid the bilisters, pock marks and scratching . This kind of lock is suitable for the 20mm to 35mm door and the core of lock is 8X8 square core.



1) Streching Stroke: 20mm

2) The thickness of lock body: 12mm

3) Lock core: 8*8mm

4) Surface Treatment: Dull polishing 400
