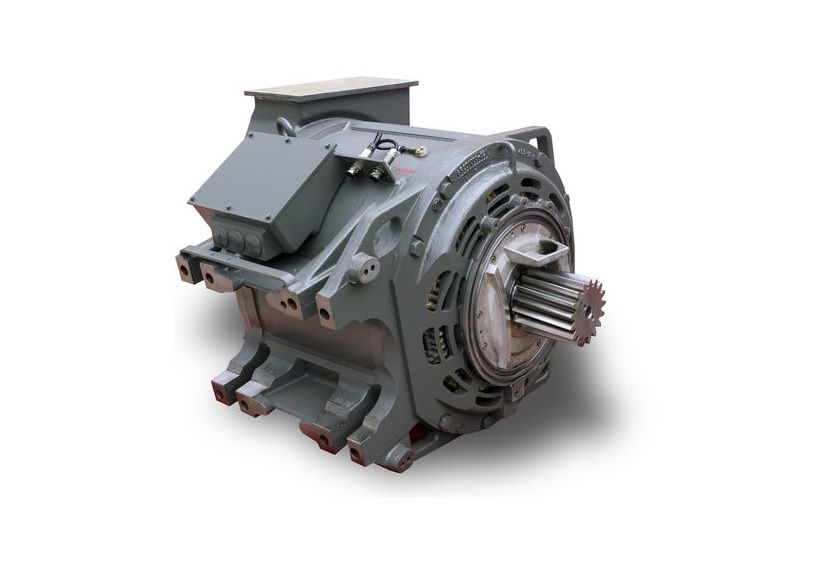

Based on introduction technology and previous ten types of traction motors, the motor is developed and manufactured according to special requirements of the locomotive to apply to trunk line HXD1C six-axle electric freight locomotive to achieve single-axle control and better adhering performance.
Volume (length*width*height:cm)105.5*113.85*91.2
Weight(kg)2580
Rated output power1225 kW
Rated working voltage1375 V
Rated Current598 A
Rated rotating speed1720 r/min
Maximum rotating speed3450 r/min
Rated torque6802 N•m
Starting torque is no less than9717 N•m
Motor insulation grade200
1. Specially designed squirrel cage rotor
2. Optimized electro-magnetic design
3. Frame-free structure
4. Cyclical oil lubrication structure
1. The rotor adopts copper squirrel cage structure with high reliability and less maintenance
2. The optimized electro-magnetic design could inhibit harmonic wave conspicuously
3. With compact structure, small size and light weight, it could bear shock during vehicle operation with good performance and cooling effect.
4. effective lubrication
