Railway UIC Brake Systems

Share

MUB air brake system was developed according to UIC standard, and the technical parameters and interface sizes can meet the requirements of UIC standard, which makes sure that the vehicles mounting MUB air brake system can operate with the vehicles mounting other UIC standard brake system (eg. the vehicles installing Knorr or Wabtec brake system).

  • Description
  • Specification

MUB air brake system was developed according to UIC standard, and the technical parameters and interface sizes can meet the requirements of UIC standard, which makes sure that the vehicles mounting MUB air brake system can operate with the vehicles mounting other UIC standard brake system (eg. the vehicles installing Knorr or Wabtec brake system).


The MUB brake system is fully compliant with UIC standards and got the TSI certificate in 2013 and is on the ERA (Eu Railways) database.

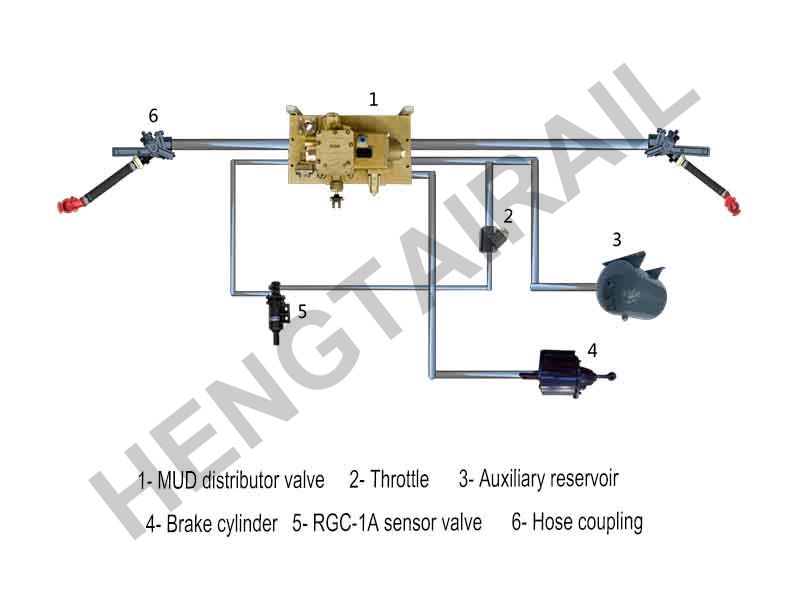

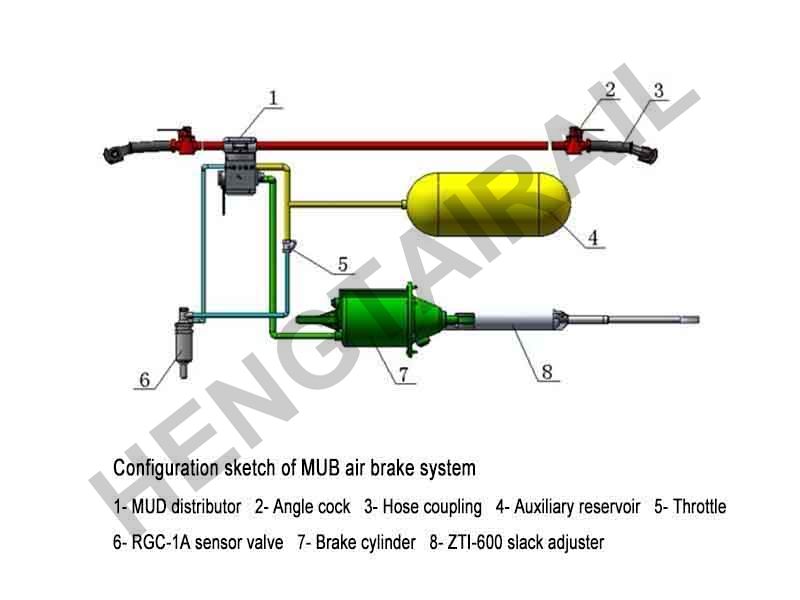

MUB brake system include: distributor valve, sensor valve, brake cylinder, auxiliary reservoir, bidirectional slack adjuster, throttle , angle cock, hose coupling, etc.


MUB brake system has been used in Pakistan, Sudan, Myanmar and Gabon since 2009 with stable and good performance.


Pictures of MUB brake system are shown below:

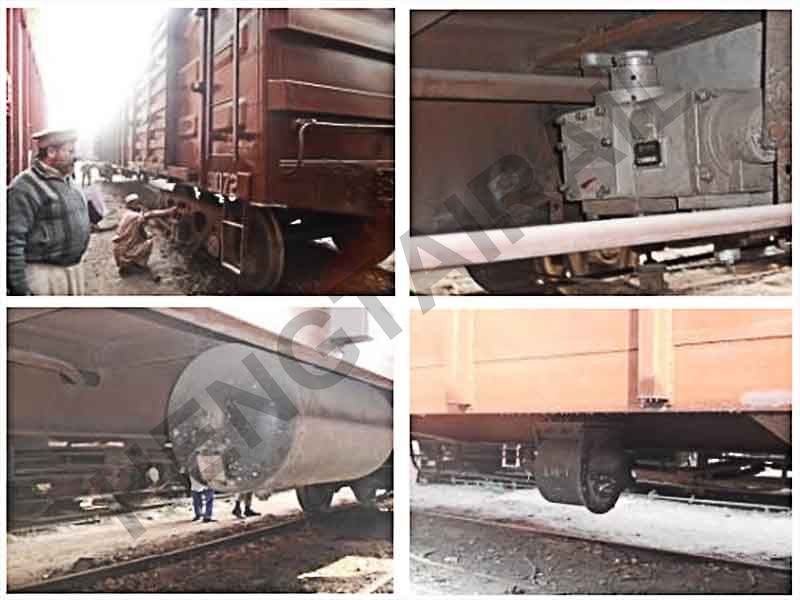

Pakistan box wagons in 2009

Railway UIC Brake Systems

Sudan box wagon in 2014

Railway UIC Brake Systems

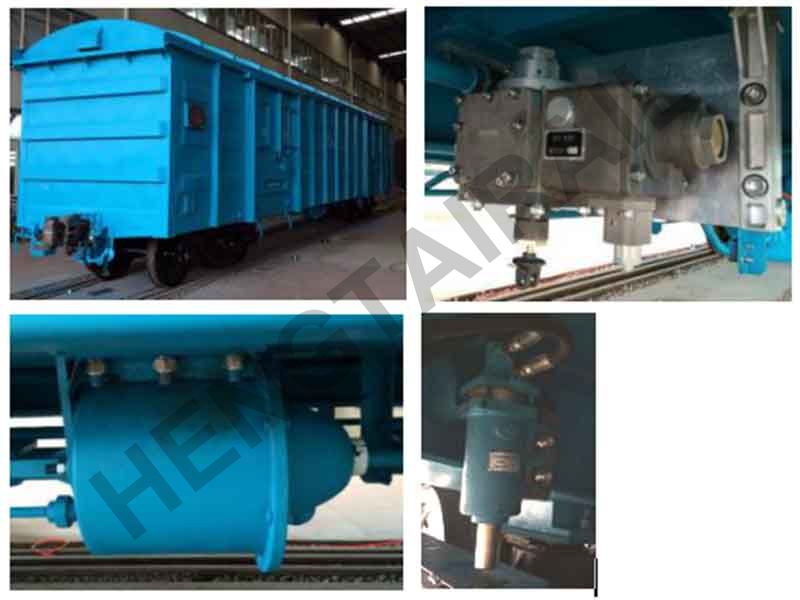

Myanmar box car in 2016

Railway UIC Brake Systems

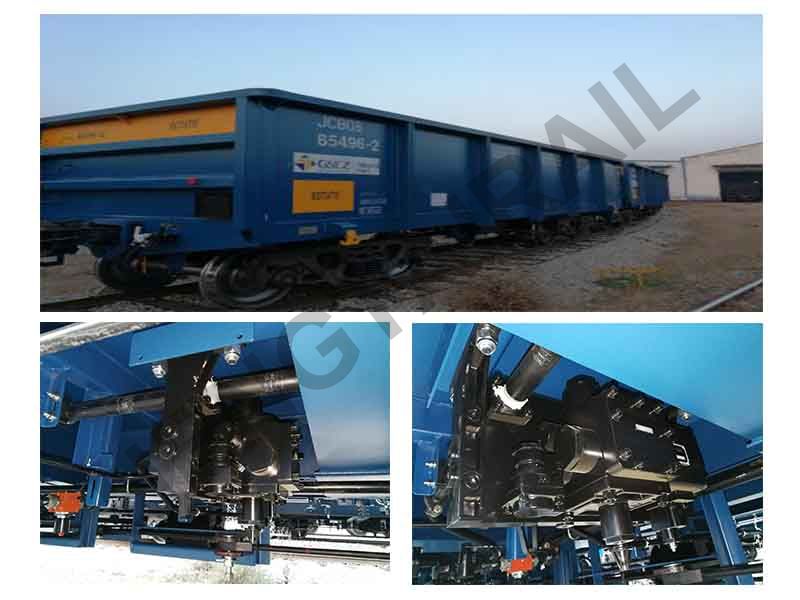

Gabon open-top wagon in 2018

Railway UIC Brake Systems

The parameters of MUB air brake system are designed based on UIC standard, and IRIS Quality Management System is strictly followed during our R & D process, so as to ensure the performance and the reliability of the products.


Performance Parameter

Requirements Of

UIC Standard

MUB Brake System

Working temperature scope (℃)

-40~70

-40~70

Nominal pressure(kPa)

500±10

500±10

Maximum pressure of brake cylinder (kPa)

Loaded status

380±10

380±10

Empty status


According to client’s requirements

Time for the brake cylinder pressure to rise from 0 to 95% of the maximum pressure(s)

Position G

18~30

24±3



Position P



3~6

3~6

Time for the brake cylinder pressure to drop from the maximum pressure to 40kPa(s)

Position G

45~60

45~60

Position P

15~20

15~20

Braking propagation speed (m/s)

≥250

The maximum speed is 285
