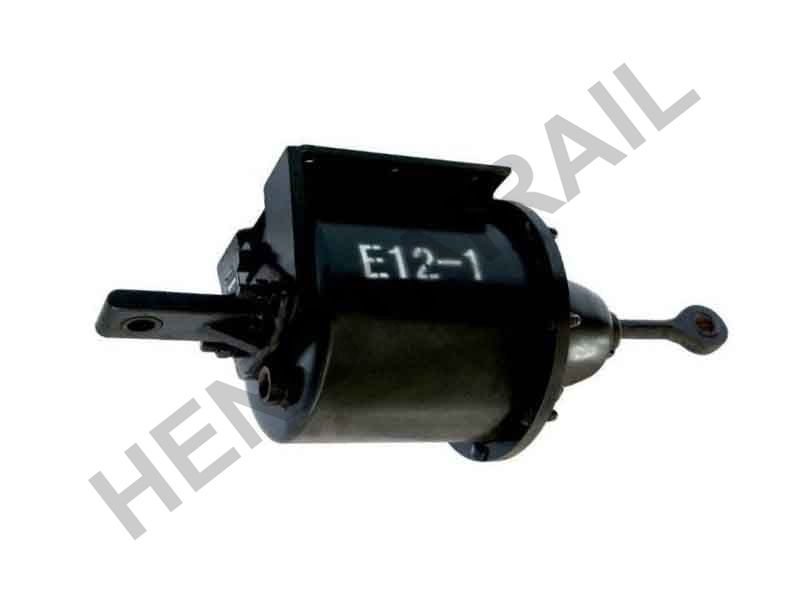

UIC E12-1 Brake Cylinder For Railway

Share

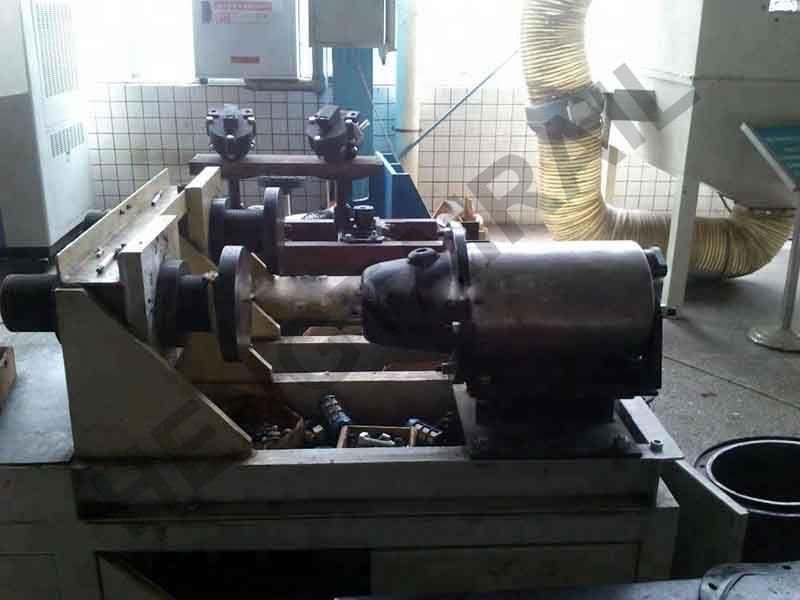

Brake cylinder can produce a thrust varying from the pressure of the brake cylinder and the piston size, and pass this thrust to the brake rigging by piston push rod. When the wagon releases, the brake cylinder with push-rod centering device helps the brake shoe to leave the wheel tread.

  • Description
  • Specification

Brake cylinder can produce a thrust varying from the pressure of the brake cylinder and the piston size, and pass this thrust to the brake rigging by piston push rod. When the wagon releases, the brake cylinder with push-rod centering device helps the brake shoe to leave the wheel tread.


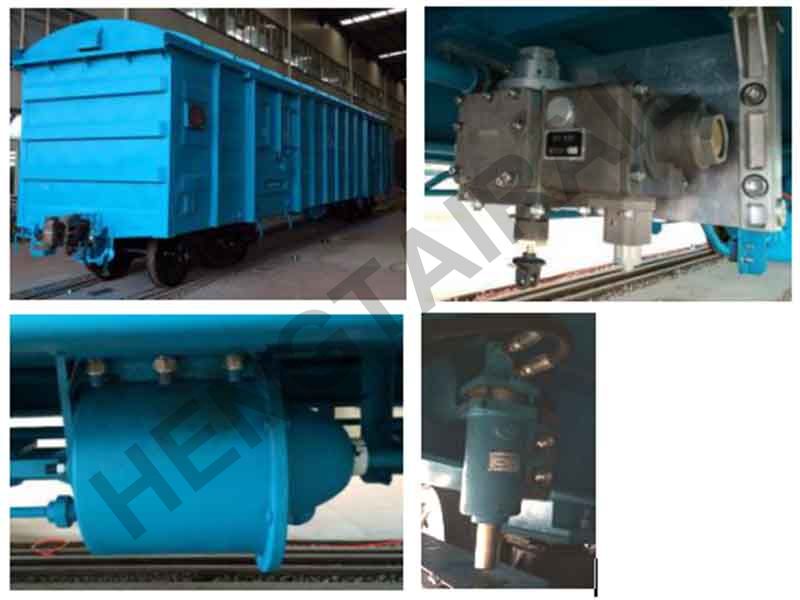

MUB air brake system was developed according to UIC standard, and the technical parameters and interface sizes can meet the requirements of UIC standard, which makes sure that the vehicles mounting MUB air brake system can operate with the vehicles mounting other UIC standard brake system (eg. the vehicles installing Knorr or Wabtec brake system).


The MUB brake system is fully compliant with UIC standards and got the TSI certificate in 2013 and is on the ERA (Eu Railways) database.


MUB brake system has been used in Pakistan, Sudan, Myanmar and Gabon since 2009 with stable and good performance.


The parameters of MUB air brake system are designed based on UIC standard, and IRIS Quality Management System is strictly followed during our R & D process, so as to ensure the performance and the reliability of the products.

Performance Parameter

Requirements Of

UIC Standard

MUB Brake System

Working temperature scope (℃)

-40~70

-40~70

Nominal pressure(kPa)

500±10

500±10

Maximum pressure of brake cylinder (kPa)

Loaded status

380±10

380±10

Empty status


According to client’s requirements

Time for the brake cylinder pressure to rise from 0 to 95% of the maximum pressure(s)

Position G

18~30

24±3



Position P



3~6

3~6

Time for the brake cylinder pressure to drop from the maximum pressure to 40kPa(s)

Position G

45~60

45~60

Position P

15~20

15~20

Braking propagation speed (m/s)

≥250

The maximum speed is 285
